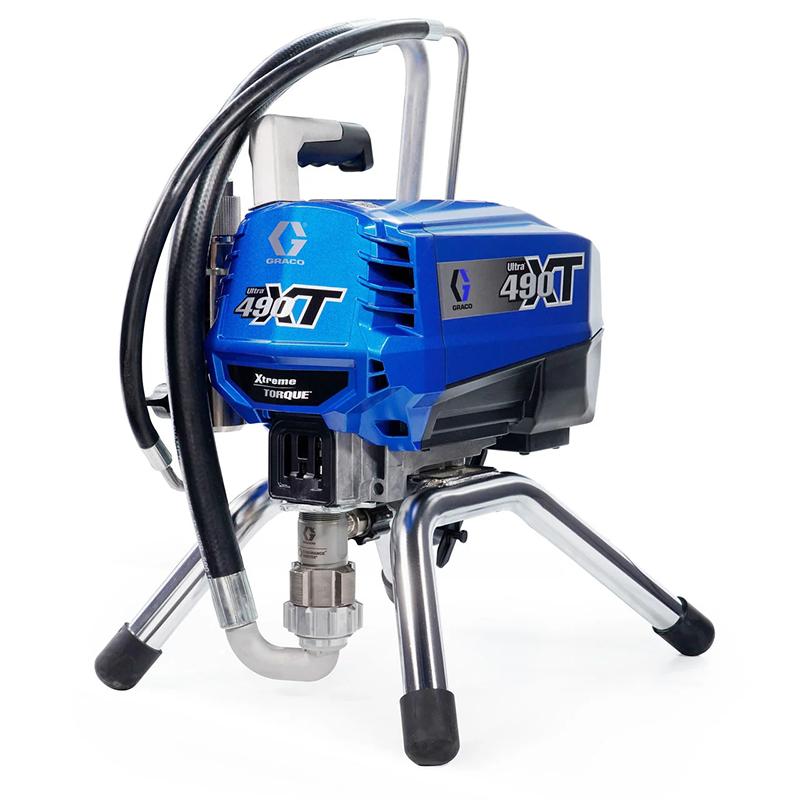

The Ultra 490 XT delivers an airless spray experience like no other. Made in the USA with a 1.3 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance and the longest life pump in its class.

The 490 XT is sure to become a staple in your fleet, making it easier to get more work done in a day with increased flow and production rates.

Compatible materials:

• Interior/Exterior Latex
• Oil-based Primers
• Acrylics
• Block Fillers

Features

Xtreme Torque Motor Technology

• 15 X more torque than traditional motors

• 8 X more magnets provide unmatched power and performance

• 90% lower running speeds extend motor life

• 10 X quieter

Spray 3 x more Litres Than Most Spray Pumps

• Endurance piston pumps are made using the highest grade materials to deliver the industry's longest life

• Proven proprietary V-MAX Blue™ packings individually supported on chrome piston rod to deliver reliability you can count on

• Delivers the longest pump life by automatically rotating piston rod to extend pump life

• Virtually eliminates side loading
• Up to 80% longer piston stroke than competitive models — enhances flow and boosts performance

• Extended piston stroke design increases wear surface and improves hard part life

Steadiest Pressure Control with Widest Performance Range

• Rapid-Response™ Control eliminates pressure fluctuations by continuously monitoring pressure — 60X per motor revolution

• Instantly adjusts motor speed to eliminate 75% of pressure fluctuations for a Perfect Airless Finish™

• Offers the largest operating pressure range providing full control and maximum productivity

• Flexible for more applications—coatings, hose lengths and tip sizes to meet every application

• Low pressure mode (50 to 2000 psi) adjustable in 10 psi increments
• Use High Pressure Mode for Xtreme Performance (500–3,300 psi)

Push Button Performance

• Two selectable performance modes offer unique performance levels to boost efficiency on every job
• Features a bright easy-to-read LED Display — see performance from across the room

Maximise Uptime

• Industry’s fastest pump cleaning system delivering 6 X faster cleaning with 1/2 the water
• WatchDog Pump protection prevents damage by shutting off the pump when it's out of paint, preventing premature wear
• Easy Out Filter provides easy maintenance and less clogging
• Eliminate downtime with ProConnect on-the-job pump replacement

Contractor PC Spray Gun

• All-day comfort & control
• Lightest weight gun in its class
• Up to 50% lighter trigger pull force
• E-Z Fit adjustable trigger length
• Complete gun rebuild in seconds with ProConnect cartridge

Tech Specifications

Ultra 490 XT

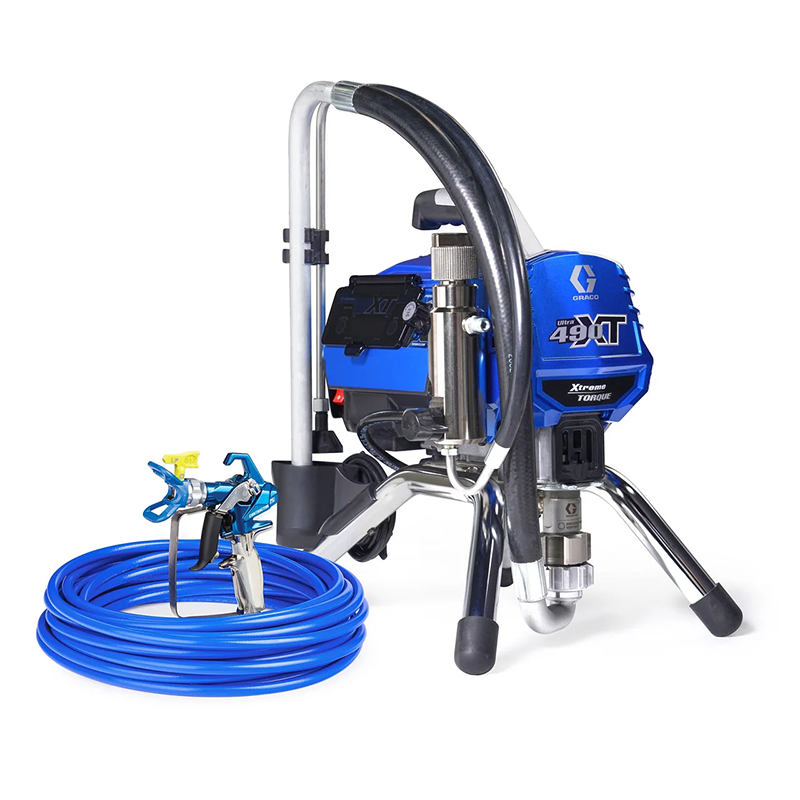

Includes

• Contractor PC Gun
• RAC X Guard
• RAC X LP 517 Tip
• BlueMax II Hose 1/4" (6.4mm) x 15m

Video

Downloads

• Ultra XT Brochure
• 490 XT Manual
