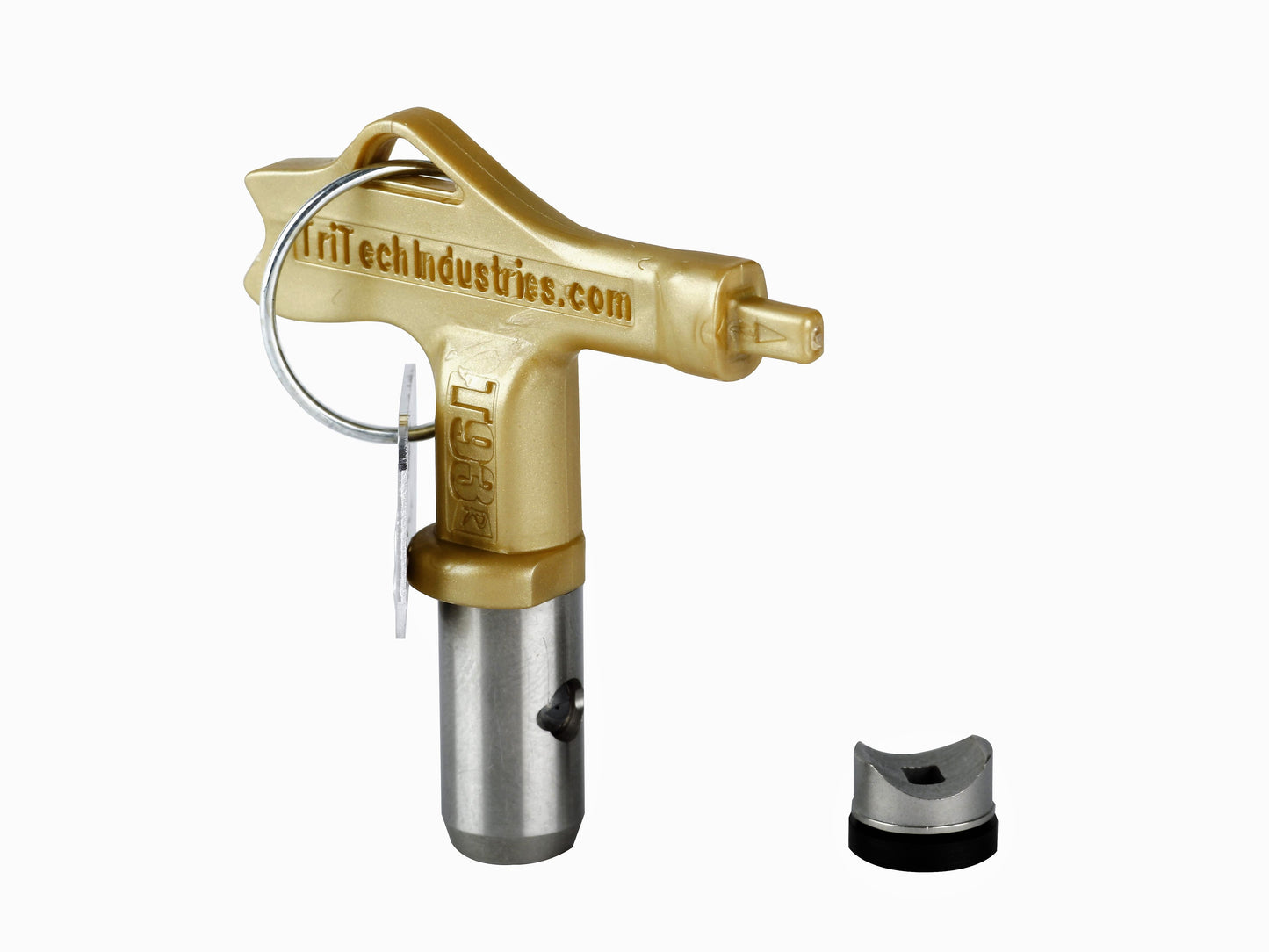

TRITECH QUF Ultra Finish Airless Tip

The Tritech Airless spray tips are regarded as one of the best in the industry. Ultra Finish airless tip are designed with a pre-orifice for double atomisation of paint achieving finish second to none. Ideal for doors, cabinetry and trims, as well as wall area where an ultra smooth finish is required.

Spray at lower pressures with less paint use, and ultra finish tips are reversible for easy clearing if blocked.

Features:

Pressure rating of 350 bar (5075 PSI)
High efficiency atomisation - spraying with up to 55% less overspray
Reduced spraying pressure for softer spray and consistent finish
Reduced paint use compared to Contractor tips
Longer service life
Precision manufactured in the USA
Manufactured from a military grade tungsten carbide with a Rockwell hardness of 93; for comparison, a diamond has a Rockwell hardness of 100.
Patented tip seal alignment with square opening that fits on the tip handle. This unique feature allows you to easily insert the seal into the guard and easily align the seal correctly. Quick accurate installation every time

Spray Chart

Tip	Fan Spray Size	Orifice	Flow (L/min)
108	5 - 10cm	0.008"	0.19
110	5 - 10cm	0.010"	0.34
112	5 - 10cm	0.012"	0.45
206	10 - 15cm	0.006"
208	10 - 15cm	0.008"	0.19
210	10 - 15cm	0.010"	0.34
212	10 - 15cm	0.012"	0.45
214	10 - 15cm	0.014"	0.68
306	15 - 20cm	0.006"
308	15 - 20cm	0.008"	0.19
310	20 - 25cm	0.010"	0.34
312	20 - 25cm	0.012"	0.45
314	20 - 25cm	0.014"	0.68
408	25 - 30cm	0.008"	0.19
410	25 - 30cm	0.010"	0.34
412	25 - 30cm	0.012"	0.45
414	25 - 30cm	0.014"	0.68
510	30 - 35cm	0.010"	0.34
512	30 - 35cm	0.012"	0.45
514	30 - 35cm	0.014"	0.68
516	30 - 35cm	0.016"	0.91
518	30 - 35cm	0.018"	1.17
612	35 - 40cm	0.012"	0.45
614	35 - 40cm	0.014"	0.68
616	35 - 40cm	0.016"	0.91
618	35 - 40cm	0.018"	1.17
620	35 - 40cm	0.020"
